Tilt & Turn Doors Is Our Inward-Opening Design That Functions In Two Ways. They Are Hinged From The Side And Open Inwards, Or, For Ventilation, The Door Can Be Tilted.
The Tilt Function Is Available On The ‘Master’ Door Only. Complete With A Large Glass Area For Plenty Of Light Intake, It’s The Ideal Door For Many Styles Of Modern Homes.

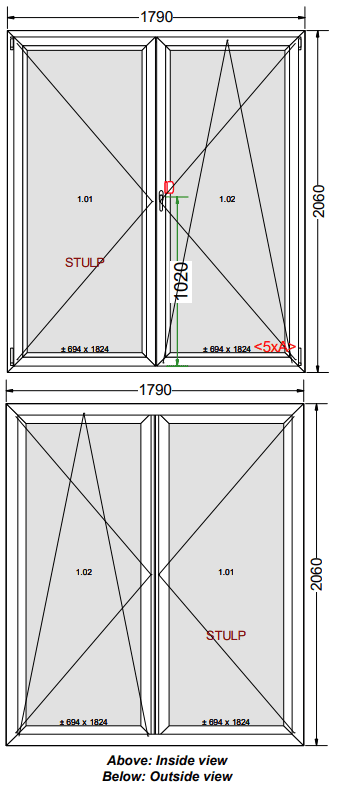

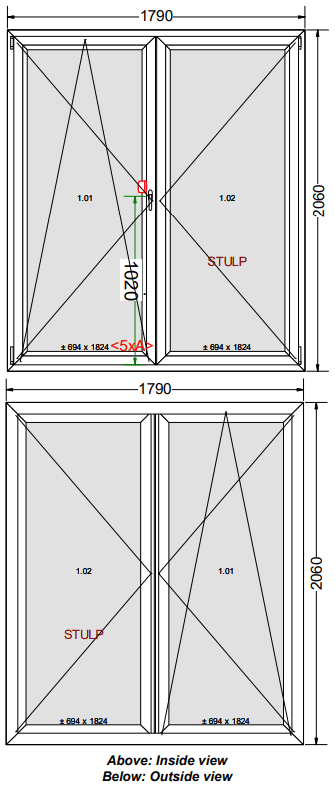

Door Specification
Tilt and Turn Door Specification
| Specifications | Details |
|---|---|
| Door Frame Thickness | 76mm |
| System | Salamander GreenEvo 76 2D |
| Dimensions | 1790 mm x 2060 mm |
| Colour of Core / Gasket | White core - black gasket |
| Frame Reinforcement | Solid steel 2 mm |
| Drainage | BOTTOM: DRAINAGE STD (visible at front) |
| Weld Type | V-Perfect |
| Glazing | 4 ESG/20Ar/4th ESG [Ug=1.1] (28mm) tempered glass. |
| Glazing Bead | ROUND LINE |
| Hardware type | Standard |
| Movable Post | 70 mm (STD) |
| Fitting | SIEGENIA TITAN |
| Handle | MoonLine |
| Door Catch | Yes - hand hold, white |
| Thermal Coefficient | Uw = 1.3 W/m²·K |
| Unit Weight | 127 kg |
| OPENING INSIDE | Main door leaf - LH inside (viewed from inside) |
Accessories
- Inner handle colour: white
- Colour of covers: WHITE
- Passage sash openings 180° / 90° / etc.
Glazing Info
- 4 ESG/20Ar/4th ESG [Ug=1.1] (28 mm) 9016 ULTIMATE WHITE
- Warm edge: SWISSPACER ULTIMATE white (9016)
- Solar gain = 65%
- Light transmission = 82%
- Pane size: 732 x 1862 (2 pcs)
The presented graphic materials are for illustrative purposes only, and the actual colours and textures of the products may differ from those shown in the advertising materials. The graphics presented, including the presentation of colours, cannot constitute the basis for a complaint.
